糧機刮板鏈（焊接鏈）

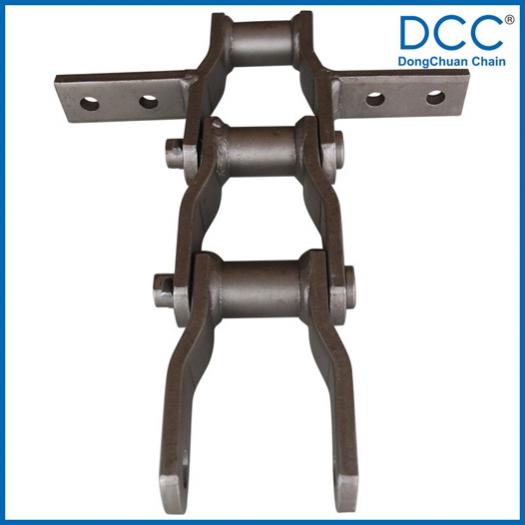

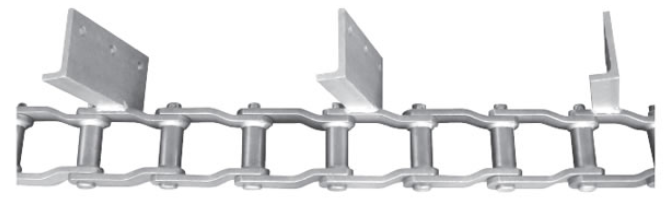

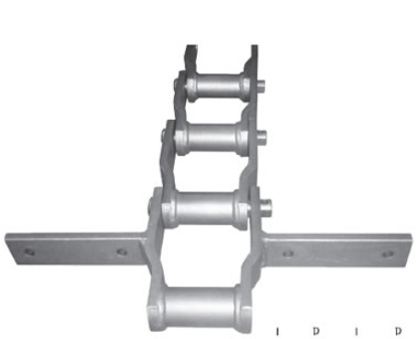

焊接彎板鏈在糧食機械行業也得到廣泛的應用,就是糧機刮板鏈，又叫做糧機焊接鏈。焊接鏈主要適用于有強烈沖擊、物料磨損以及含有大量粉塵的較差工作環境，并在低速工況下承載。
該種鏈條是由相同的彎板鏈節鉸接連成整鏈，因此它不需要過渡鏈節，一掛整鏈的鏈節數可以是偶數，也可以是奇數。鏈條的套筒和鏈板的聯接是采用焊接的工藝，結構簡單，而卻使得鏈條更具耐用性。
為了提高鏈條的品質和使用周期，我們采用了全自動焊接機器人對套筒和鏈板進行焊接，保證了焊接工藝的統一性和穩定性，并按世界前列鏈條廠的焊接標準檢驗焊后的鏈節，同時，按照5％的抽檢比例對焊后的鏈節進行破壞性的試驗，確保每個鏈節焊后的質量得到保證。針對鏈條的銷軸，我們采用月牙形的高頻處理，使銷軸在提高耐磨性的前提下強度更高。

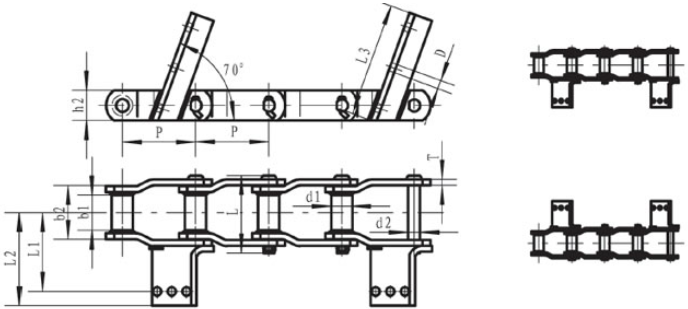

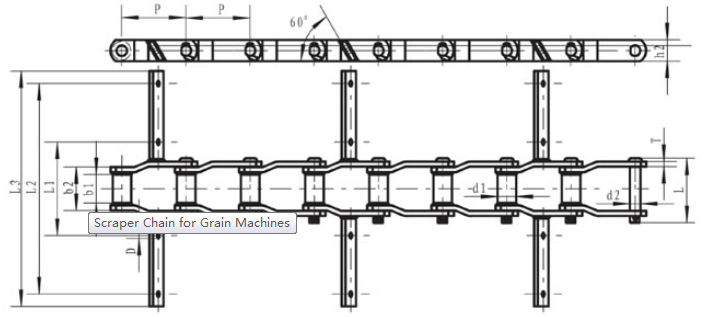

Technical Specifications
| Chain No. | Pitch P (mm) | Outer diameter of bushing d1 (mm) | Diameter of pin d2 (max) (mm) | Height of sidebar h2 (max) (mm) | Inner width between small ends b1 (mm) | Outer width between small ends b2 (mm) | Thickness of sidebar T (mm) | Dimension of scraper | Tensile strength Q (min) (KN) | |||
| L1 (mm) | L2 (mm) | L3 (mm) | D (mm) | |||||||||
| 78.1 | 26.97 | 14.35 | 31.8 | 38.1 | 57.4 | 6 | 110 | 150 | 170 | 10 | 132 | |
| 78.1 | 26.97 | 14.35 | 31.8 | 38.1 | 57.4 | 6 | 130 | 180 | 220 | 10 | 132 | |
| 78.1 | 25.4 | 14.29 | 32 | 31.8 | 57 | 6.4 | 155 | 235 | 265 | 14 | 100.1 | |
| 78.1 | 25.4 | 14.29 | 32 | 31.8 | 57 | 6.4 | 160 | 320 | 350 | 14 | 100.1 | |
| 101.6 | 36.5 | 19.05 | 38.1 | 41.28 | 69.9 | 9.5 | 165 | 235 | 265 | 14 | 300 | |
| 101.6 | 31.75 | 19.05 | 38.1 | 41.28 | 66.9 | 8 | 150 | 190 | 270 | 12 | 300 | |
| 101.6 | 36.5 | 19.05 | 38.1 | 41.28 | 69.9 | 9.5 | 170 | 280 | 310 | 14 | 300 | |
| 101.6 | 31.75 | 19.05 | 38.1 | 41.28 | 69.9 | 9.5 | 170 | 290 | 330 | 12 | 300 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 59 | 91.2 | 10 | 230 | 370 | 430 | 14 | 356 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 66 | 98 | 10 | 230 | 370 | 430 | 14 | 356 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 59 | 91.2 | 10 | 224 | 374 | 434 | 14 | 356 | |
| 153.67 | 44.45 | 25.05 | 50.8 | 76.2 | 111.8 | 12.7 | 201.4 | 441.4 | 498 | 13 | 378.1 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 66 | 98 | 10 | 230 | 500 | 560 | 14 | 356 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 66 | 102 | 12 | 224 | 534 | 594 | 14 | 511 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 66 | 102 | 12 | 224 | 504 | 564 | 14 | 511 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 68 | 104 | 12 | 230 | 450/670 | 730 | 14 | 511 | |
| 153.67 | 44.45 | 28.75 | 60 | 73 | 109 | 12 | 226 | 450/674 | 734 | 14 | 543 | |
| 153.67 | 44.45 | 28.75 | 60 | 73 | 109 | 12 | 230 | 560/890 | 950 | 14 | 543 | |
| Chain No. | Pitch P (mm) | Outer diameter of bushing d1 (mm) | Diameter of pin d2 (max) (mm) | Height of sidebar h2 (max) (mm) | Inner width between small ends b1 (mm) | Outer width between small ends b2 (mm) | Thickness of sidebar T (mm) | Dimension of scraper | Tensile strength Q (min) (KN) | |||
| L1 (mm) | L2 (mm) | L3 (mm) | D (mm) | |||||||||
| 101.6 | 31.75 | 19.05 | 38.1 | 41.28 | 69.9 | 9.5 | 154 | 294 | 334 | 12 | 300 | |
| 153.67 | 44.45 | 25.2 | 50.8 | 76.2 | 111.8 | 12.7 | 230 | 350 | 400 | 14 | 378.1 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 59 | 91.2 | 10 | 224 | 374 | 434 | 14 | 356 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 66 | 102 | 12 | 224 | 504 | 564 | 14 | 511 | |
| 153.67 | 44.45 | 25.4 | 50.8 | 66 | 102 | 12 | 224 | 534 | 594 | 13 | 511 | |
| 153.67 | 44.45 | 28.75 | 50.8 | 73 | 109 | 12 | 226 | 636 | 696 | 14 | 543 | |
| 153.67 | 44.45 | 28.75 | 60 | 73 | 109 | 12 | 226 | 450/674 | 734 | 14 | 543 | |
| 153.67 | 44.45 | 28.75 | 60 | 73 | 109 | 12 | 230 | 560/890 | 950 | 14 | 543 | |
| Chain No. | Pitch P (mm) | Outer diameter of bushing d1 (mm) | Diameter of pin d2 (max) (mm) | Height of sidebar h2 (max) (mm) | Inner width between small ends b1 (mm) | Outer width between small ends b2 (mm) | Thickness of sidebar T (mm) | Dimension of scraper | Tensile strength Q (min) (KN) | |||
| L1 (mm) | L2 (mm) | L3 (mm) | D (mm) | |||||||||
| 153.67 | 44.45 | 28.57 | 63.5 | 73 | 111.76 | 12.7 | 163.4 | 193.4 | 240 | 18 | 542 | |
